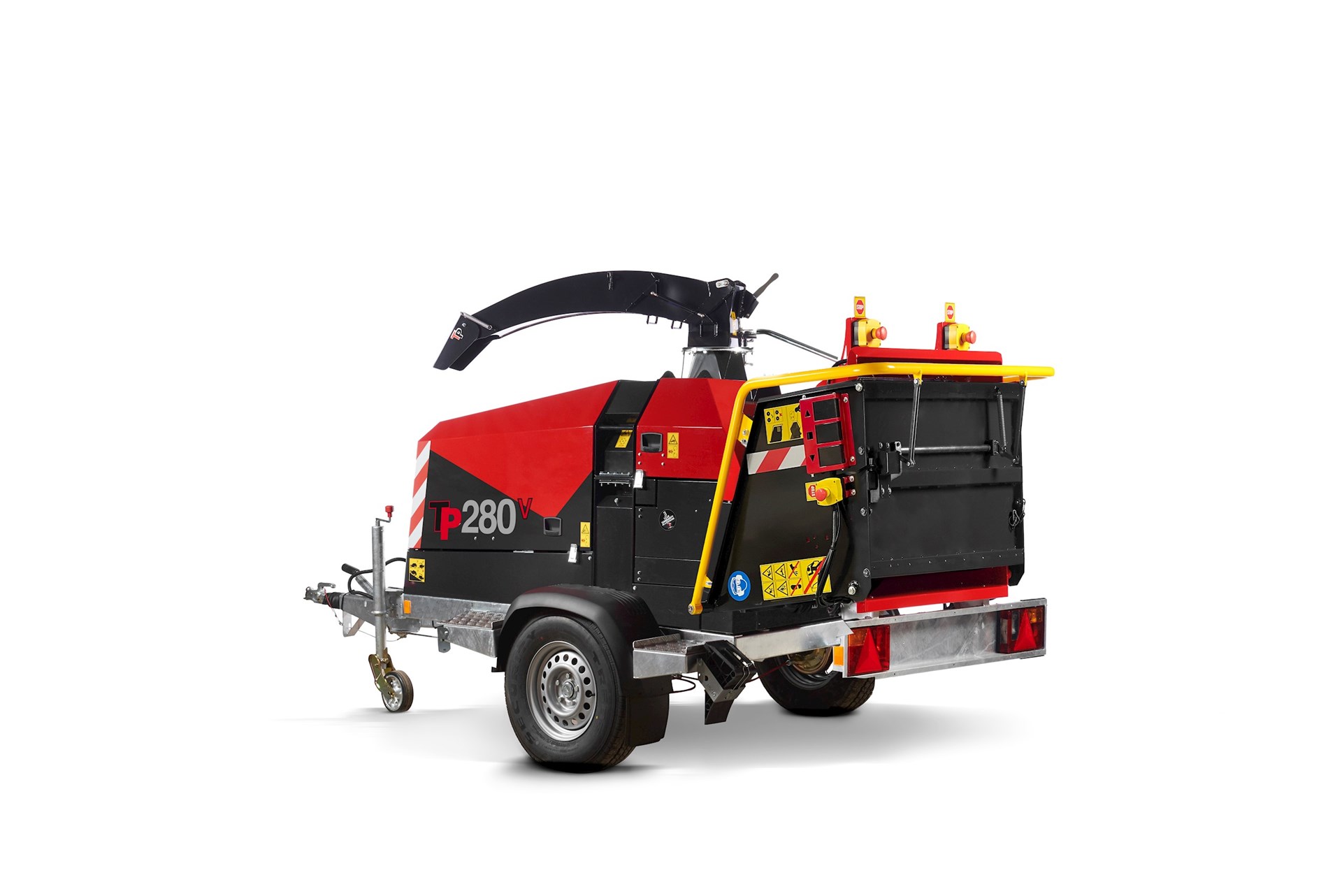

TP 280 MOBILE
Infeed
| Roller opening: | 280 x 280 mm |
| Number of rollers: | 2 |
| Roller position: | Vertical |
Chipper type
| Chipper type: | Disc chipper |
| Chipping angle: | 90º |
| TP OPTICUT: | Yes |
| TP TWIN DISC: | Yes |
| Number of knifes: | 4 |
| Number of cuts per turn: | 4 |
| Woodchip size: | 6-16 mm |
| Rotorspeed: | 1350 r/min |
| Rotordiameter: | 860 mm |
| Rotorweight: | 193 kg |
| Transmission: | TP STARTER |
| Counter knife horizontal: | 1 turnable |
| Counter knife vertical: | 2 |
| Replacement of wearing plate: | Yes |
| Wearing plate: | Yes |
| TP CHIP KIT: | Option |
Spout System
| TP VARIO SPOUT (ELCON): | Standard |
| TP FIXED SPOUT: | Option |
Stress control
| Stress control: | TP PILOT + |
Engine
| Engine: | Hatz 4H50TIC |
| Fuel: | Diesel |
| Engine power: | 74 hp/56 kW |
| Number of cylinders: | 4 |
| Fuel consumption: | 6l/h |
Dimensions
| Length (transport/operation): | 4669 mm/5267 mm |
| Width: | 1802 mm |
| Height (t/o) TP VARIO SPOUT: | 2398 mm/2643-3312 mm |
| Height (t/o) TP FIXED SPOUT: | 2643 mm |
| Weight: | 1900 kg |
